PAT410, PAT420 and PAT450

Portable appliance tester with on-board data storage

The PAT400 series from Megger is a new generation of downloading and uploading portable appliance testers, fully testing portable electrical equipment to the latest edition of the Code of Practice for the In-Service Inspection and Testing of Electrical Equipment.

Now with expert mode that safely decreases the test time by about 20 seconds for each asset.

Also new for v2.5 firmware is the facility to skip all electrical tests.

Vast 10,000 record on-board memory

Instant re-start as you move from room to room

Soft keys to speed you through the set up and testing process

Full PAT testing including Portable RCD testing

Visual Failure and repair code facility

USB upload and download

Upgradable firmware through USB port with Megger PAT Upgrader software

Fully compatible with Megger PowerSuite software

Fully compatible with Simply PAT 7 software

Fully compatible with the ToolMinder PAT software

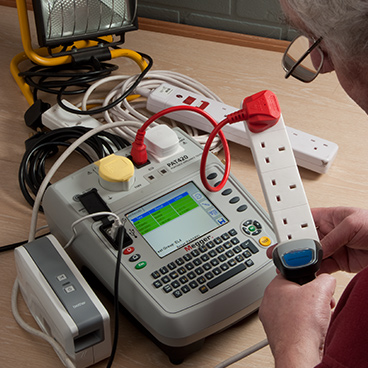

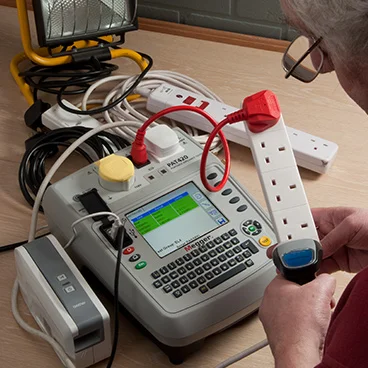

Optional USB operated laser scanner and laminated label printer. (Brother P700 and PT2430)

Three new PAT testers with full database functionality based on the well received PAT300 series. The PAT 400 series introduces a new level of convenience and speed to PAT testing using onboard test results.

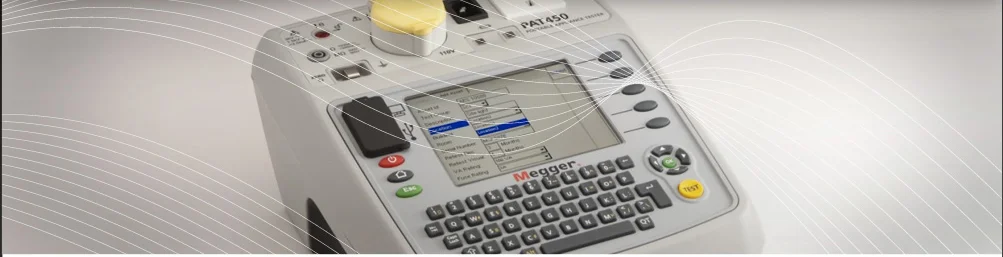

PAT410 perfect for those content to bond test solely at 200mA, The smallest, lightest of the PAT400 series weighs only 2.7 kg yet having a 5.7” colour QVGA display and full qwerty keyboard.

PAT420 offers bond testing at all three currents, 200mA, 10A and 25A with 230V and 110V operation. Insulation Resistance testing at 250vdc and 500vdc. This tester is the choice of those who are full-time industrial or commercial PAT testers.

PAT450. Also offers bond testing at all three currents, 200mA, 10A and 25A with 230V and 110V operation. Insulation Resistance testing at 250vdc and 500vdc. This tester also offers 1.5 kV and 3.0 kV flash testing making the perfect tool for hire and repair workshops.

See How It’s DoneThe PAT 400 user guide is extensive, but this excellent DVD shows you exactly how it’s done.

The PAT 400 series of PAT test instruments is a direct replacement to the PAT 4. PATS Limited was involved with Megger in the design and concept of both the PAT4 and PAT400 series test instruments. Also we have conducted most of the onsite commercial testing to make sure the PAT 400 series is the best PAT testing instrument on the market today.

Megger makes PAT testing easier than ever with the all new PAT100 Series Test Instruments

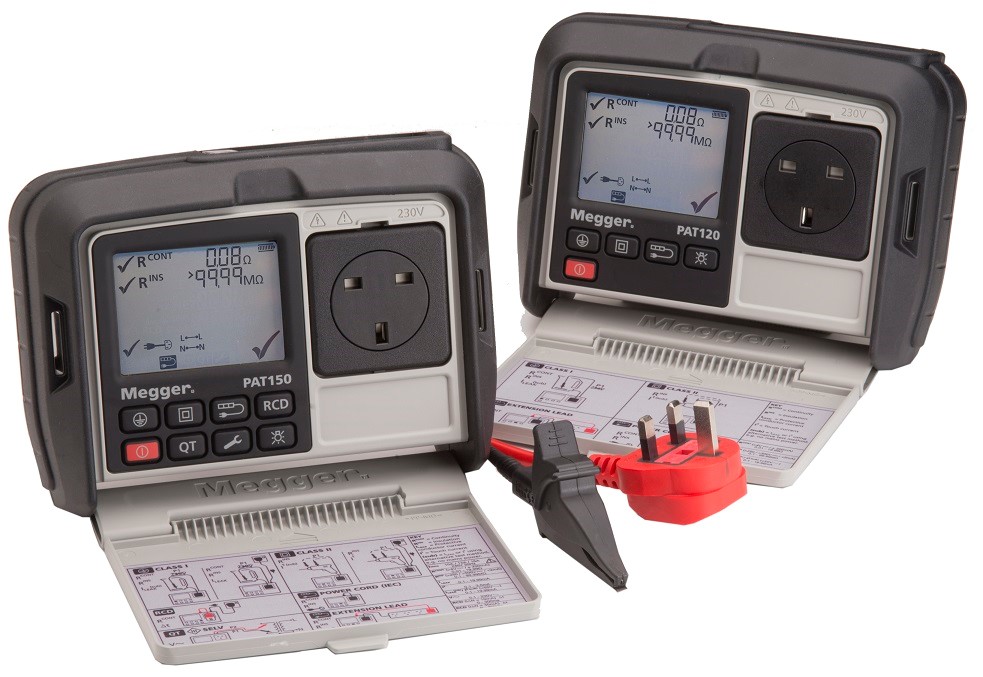

Megger’s new PAT100 series testers are currently available in three models – PAT120, PAT150 and PAT150R. All are complemented by a new smartphone/tablet app which is available for Apple and Android devices. The free app provides cable resistance calculations for extension leads with guidance on CSA and current limit. This will be followed by chargeable version that includes a concise guide to PAT testing, risk assessment and retest frequency calculations.
The keenly priced PAT120 provides all of the functions needed to carry out tests on the vast majority of commonly encountered portable appliances. It features pre-programmed test groups with fixed pass/fail limits for testing Class I and Class II appliances as well as extension and power leads. The use of test groups means that the instruments carries out the correct sequence of tests automatically, with a minimum of operator intervention. Not only does this simplify testing, it also reduces testing time and guards against errors.
The PAT120 offers insulation testing at 500 V by default, but a 250 V option, which provides safe testing for IT equipment and surge protected devices, can be selected at the start of each test. Leakage testing is carried out using the “substitute” leakage method, which removes the need for access to a mains supply while performing the test.
For users who need to test an even wider range of portable and fixed equipment, the PAT150 offers all of the functions of the PAT120 plus many others. The additional functions include tests for 10 mA and 30 mA portable RCDs, and separate tests for continuity, insulation, leakage and SELV equipment, all of which can be accessed rapidly via the quick-test button.
With the PAT150, mains-powered leakage testing is also supported, and live-circuit measurement is available for testing the mains supply and socket polarity as well as for measuring voltages up to 300 V ac. Experienced users can quickly and easily adjust test group pass limits and test durations to suit special requirements, and the resistance of the bonding leads can be nulled to minimise measurement errors.
Both the PAT120 and the PAT150 can be powered by inexpensive and readily available AA-size alkaline cells or NiMH rechargeable batteries. The third model in the series, the PAT150R, offers identical functionality to the PAT150, but has provision for recharging NiMH batteries without removing them from the instrument.
Like all Megger products, instruments in the new PAT100 series have been designed from the outset with safety in mind, and they comply fully with all relevant UK and European requirements for electrical safety testing.

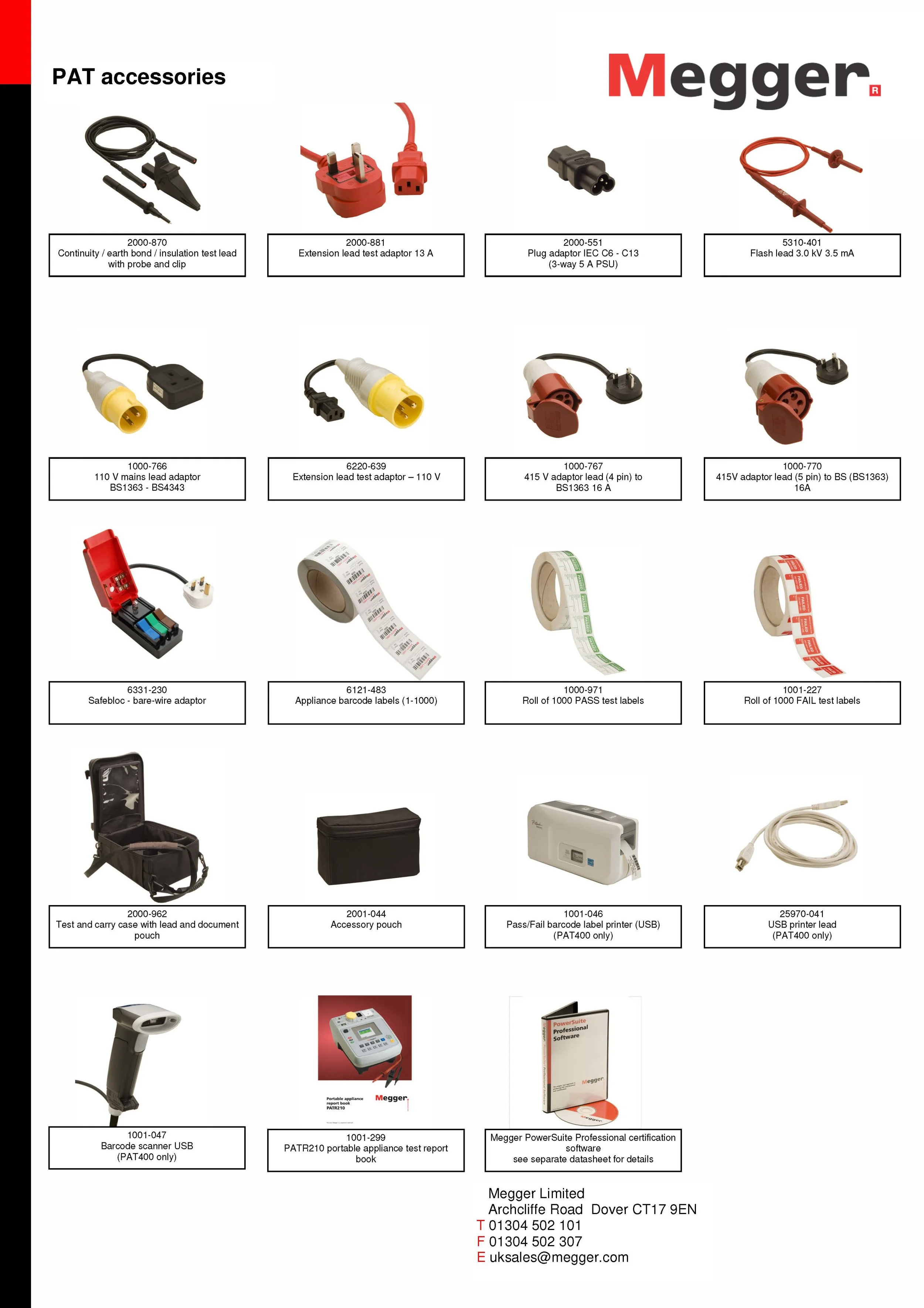

See below, full list of accessories available for PAT Testing

Megger MFT1700 Series

Multifunction installation tester

The MFT1700 series is a range of 3 instruments for testing low voltage electrical installations to BS7671. They provide all the tests required to complete the necessary electrical certification for industrial, commercial and domestic fixed wiring installations. Features include:-

• Two wire non trip loop testing for fast repeatable results
• Large bright LCD display showing dual parameters – loop resistance and fault current, insulation resistance and test voltage
• Phase rotation indication for verification of rotating machinery
• 3-phase RCD testing for industrial applications with no earth
• 3-terminal earth test for electrode resistance measurement
• On-board data storage and Bluetooth® download

MFT1710 - The entry level 17th Edition tester offering CAT IV, 3 and 2-wire non trip loop testing with resistance and fault current display, frequency measurement and the possibly the largest, brightest and clearest display on the market.

MFT1720 - The most popular of the range of 17th Edition testers offering all the benefits of the MFT1710, plus auto RCD testing, phase rotation, programmable and 3-phase RCD testing and current measurement with the optional clamp.

MFT1730 - The most sophisticated of the 17th Edition testers brings Type B RCD testing, 3-pole earth electrode testing to an instrument with result storage, downloading and internally rechargeable batteries.

Megger MFT1735

•  Two and three wire non-trip loop testing for RCD protected circuits
•  Type-B RCD and 3-phase RCD testing for industrial applications with no Earth
•  3-terminal earth test and stakeless testing for earth electrode resistance measurement **
•  Internal memory and Bluetooth® communications
•  Simple colour-coded test selection and large clear back-lit display for ease of use
•  EN61010 CATIV safety ratings and tough IP54 case

The MFT1735 instrument is designed for testing low voltage electrical installations to BS 7671. It provides all the tests required to complete the necessary electrical certification for industrial, commercial and domestic fixed wiring installations.

The range of earth electrode tests supplied on-board the MFT1735 makes it the perfect test package for those working on TT installations, vehicle charging point installations and verifying the earthing performance of lightning protection systems.

** The MFT1735 is supplied with a 3-wire earth test kit, however optional accessories are required for the ART and stakeless techniques.

We have illustrated just two of the best downloadable test instruments in the Megger range for PAT and 17th edition testing and as we are an independent distributor we can supply the complete Megger Limited range of test instruments.

Further information is available on Megger products from PATS Limited at sales@pats.co.uk
